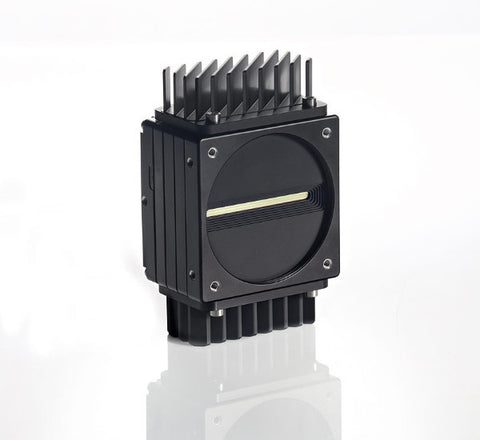

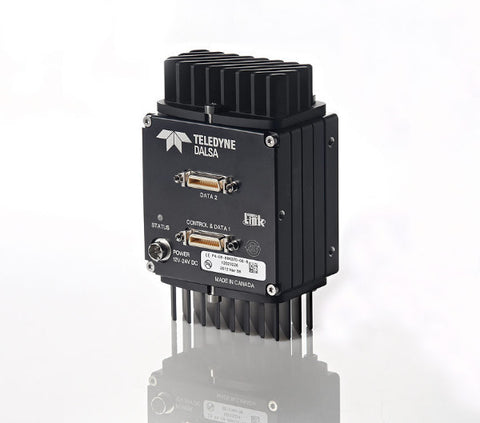

Piranha4 Mono 8k CL

Piranha4 8k, 70 kHz

Based on Teledyne DALSA's unique line scan CMOS sensor architecture, the new Piranha4 dual line scan cameras provide outstanding signal-to-noise for high speed imaging. The P4-8k has 8k resolution with a 7.04 μm x 7.04 μm pixel size for optimized optical design. The camera delivers a max line rate of 70 kHz in TDI mode.

Precise sensor alignment simplifies multiple camera calibration at the system level. The camera delivers a throughput of 573 MPix/s using the Camera Link™ interface. An advanced GenICam™ compliant interface makes the camera easier to setup, control, and integrate. Programmability includes exposure control, flat field correction, and gain settings.

  • Dual line CMOS line scan
  • 8k resolution, 7.04 µm pixels
  • Line rates up to 70 kHz and 573 MPix/s throughput in TDI mode
  • 100% fill factor
  • Exposure control
  • On-chip ADC and CDS
  • Camera Link interface
  • GenICam compliant
